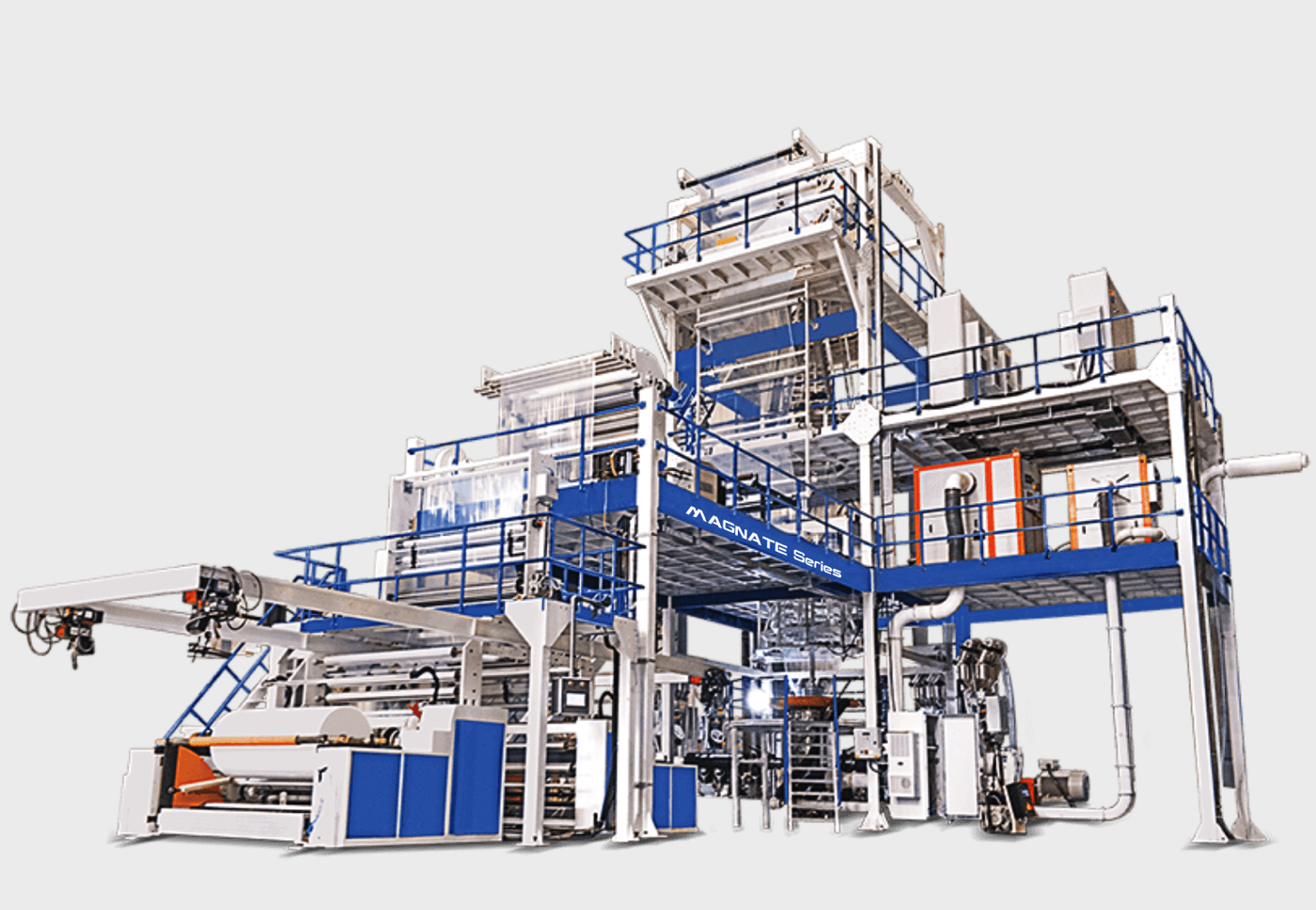

| Technical Specification | |||||
| DESCRIPTION | UNIT | 7 Layer Non IBC – PLANT | 7 Layer IBC – PLANT | 9 Layer IBC – PLANT | |
| Magnate 1250/7L | Magnate 1700/7L | Magnate 2200/7L | Magnate 1500/9L | ||
| PROCESSING DATA | |||||
| Film Layflat Width Range | mm | 900 – 1250 | 900 – 1700 | 1500 – 2200 | 900 – 1500 |
| Film Thickness Range LL/LD/HD | micron | 30 – 150 | 30 – 150 | 50 – 150 | 30 – 150 |
| Film Thickness Range with PA | micron | 45 – 150 | 45 – 150 | 45 – 150 | 45 – 150 |
| MAXIMUM OUTPUT | |||||
| LD-LD-LD | Kg/hr | 180 – 200 | 350 – 380 | 380 – 400 | 300 – 350 |
| LLD-LLD-LLD | Kg/hr | 170 – 190 | 300 – 320 | 320 – 350 | 300 – 350 |
| HD-LD-HD/LD-Tie-PA or EVOH-Tie-LD* | Kg/hr | 160 – 180 | 280 – 320 | 320 – 350 | 300 – 350 |
| No. of Extruders | 7 | 7 | 9 | ||
| Screw Dia | mm | 55/50/55/55/55/50/55 | 75P/60P/60P/60P/60P/60P/60G | 60/55/50/50/55/50/50/55/60 | |
| Extruder-Motor Rating | kW | 22/22/22/22/22/22/22 | 45/30/30/30/30/30/56 | 30/22/22/22/22/22/22/30/56 | |
| Thickness Randomisation | Oscillating Haul Off | ||||
| DIE | |||||
| No. of Film Layers | 7 | 7 | 7 | 9 | |
| Die Diameter | mm | 350 | 400 | 600 | 280 – 400 |
| TAKE OFF | |||||
| Roller Width | mm | 1600 | 1800 | 2300 | 1600 |
| Main Nip Motor | kW | 1.5 | 1.5 | 2.2 | 1.5 |
| TWO STATION SURFACE WINDER | |||||
| Type | Automatic | Automatic | Automatic | Automatic | |
| Roller Width | mm | 1600 | 1800 | 2300 | 1600 |
| Additional Nip Motor | kW | 1.5 | 1.5 | 1.5 | 1.5 |
| Winder Drive Motor | kW | 1.5 | 1.5 | 1.5 | 1.5 |
| Max. Wound Diameter* | mm | 1000 | 1000 | 1000 | 1000 |
| Line Speed | mtrs/min | Aug-80 | Aug-80 | Aug-80 | 12-120 |
| OPERATING REQUIREMENT | |||||
| Total Connected Load | kW | 310 | 425 | 425 | 470 |
| Total Space Requirement (L x W x H) | m | 20x13x14 | 23x14x15 | 23x14x15 | 23x14x15 |
