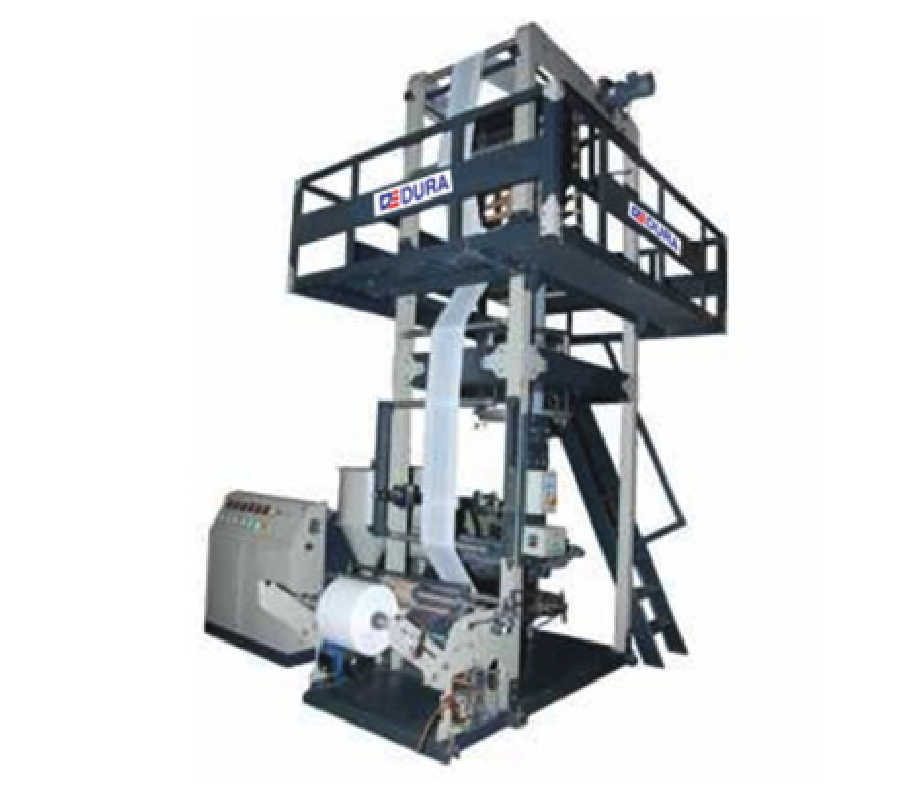

High Output HM HDPE Blown Film Plant
Specification
| Model |
DI/SD/HM/ 40 |
DI/SD/HM/ 45 |
DI/SD/HM/ SO |
DI/HM/SD/ 55 |
DI/HM/SD/ 60 |
| Screw Dia |
40mm |
45mm |
50mm |
55mm |
60mm |
| L/D Ratio |
28:01:00 |
25:01:00 |
28:01:00 |
28:01:00 |
28:01:00 |
| Max. out-put per hour |
40 Kgs. |
50 Kgs. |
65 Kgs. |
90 Kgs. |
120 Kgs. |
| Main Drive |
10 HP |
15 HP |
20 HP |
25HP |
30HP |
| Lay flat width (Min – Max) |
100-600 mm |
100-600 mm |
100- 750 mm |
200-1000 mm |
400-1300 mm |
| Thickness (Min-Max) Microns |
20 – 100 |
20 – 100 |
20 -100 |
10 – 150 |
10 – 200 |
| Die Type |
Spiral |
Spiral |
Spiral |
Spiral |
Spiral |
| Die Size |
70mm |
70mm |
70mm, 125 mm |
100 mm, 150 mm |
150 mm,200 mm |
| Temperature controllers |
6 nos. |
7 nos. 7 no s. |
| Control Panel |
Complete set |
Complete set |
| Irish ring |
Aluminium Cast |
Aluminium Cast |
| Sirens |
Bubble puncture & auto roll weight siren |
Bubble puncture & auto roll weight siren |
| Filter Type |
Candle/ Flat |
Candle/ Flat |
| Winder Type |
Surface |
Surface |
| Winder motor |
0.5 HP Torque motor |
1 HP Torque motor |
| Take off motor |
0.5 HP AC geared motor |
0.5 HP AC geared motor |
0.75 HP AC geared motor |
| Air cooling ring |
1 set with required inserts |
1 set with required inserts |
| Air blower |
2 HP AC motor |
2 HP AC motor |
|
| Nip Roller Size |
625 mm (25″) |
625 mm (25″) |
800 mm (32″) |
1050 mm (42″) |
|
| Rotating Die Attachment |
Not possible |
Possible |
Possible |
Possible |
| Total Connected Load |
22KW |
26KW |
30KW |
35KW |
41 KW |
| Foor Space |
10’x10x12′ |
11’x 11’x 12′ |
11’X 11’X 12′ |
12’x12x13′ |
12′ X 12′ X 16′ |
| Approximate weight |
2 tons |
2.2 tons |
2.5 tons |
2.5 tons |
3 tons |
