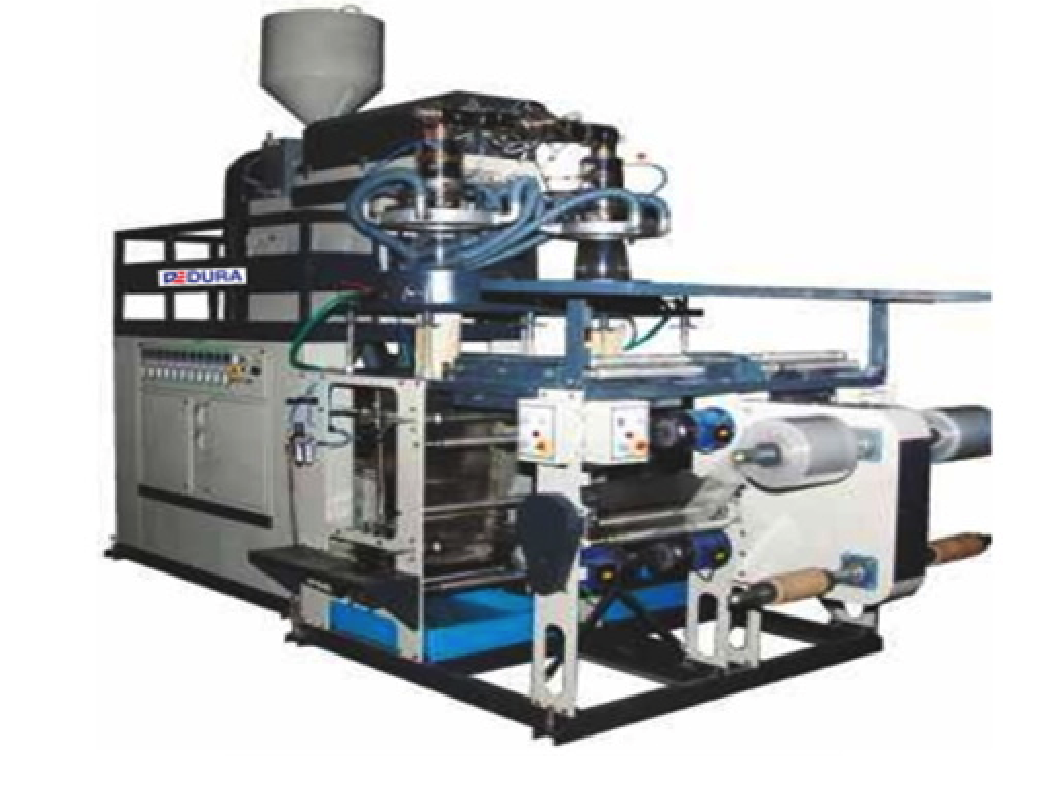

Polypropylene Transparent Blown Film Plant
Specification
ModelDI/PP/SD/ 45DI/PP/SD/ 50DI/PP/SD/ 55DI/PP/TD/ 50DI/PP/TD/ 55
| Screw Dia |
45mm |
50mm |
55mm |
50 mm |
55 mm |
| L/D Ratio |
28:1 |
25:1 |
28:1 |
28/1 |
28/1 |
| Max. out-put per hour |
50 Kgs. |
65 Kgs. |
90 Kgs. |
65 Kgs. |
90 Kgs. |
| Main Drive |
7.5 HP |
10 HP |
15 HP |
10 HP |
15 HP |
| Lay flat width (Min – Max) |
50-400 mm |
100-625 mm |
375- 750 mm |
100-400 mm |
150-500 mm |
| Thickness (Min-Max) Microns |
20- 75 |
20- 75 |
20 – 100 |
20-100 |
20-100 |
| Die Type |
Spiral |
Spiral |
Spiral |
Spiral |
Spiral |
| Die Size |
175 mm |
200mm |
275mm |
175mm |
200mm |
| Temperature controllers |
8 nos. |
8 nos. |
8 nos. |
10 nos. |
10 nos. |
| Control Panel |
Complete set |
| Bath Tub |
Moving Upward & Downward |
| Filter Type |
Candle/ Flat |
| Winder Type |
Side/ Front, Shaft type |
| Winder motor |
Two station with 0.5 HP torque motor |
| Take off motor |
0.5 HP AC geared motor |
| Air cooling ring |
Adjustable ring provided |
| Air blower |
3 HP AC motor |
| Nip Roller Size |
500 mm (20″) |
750 mm (30″) |
900 mm (36″) |
500 mm (20″) |
600 mm (25″) |
| Rotating Die Attachment |
Possible |
Possible |
Possible |
Not Possible |
Not Possible |
| Total Connected Load |
20KW |
23KW |
29KW |
25KW |
28KW |
| Floor Space |
12’x10x13′ |
12’x 11’x 13′ |
14′ X 12′ X 14′ |
12’x 12’x 13′ |
12’x 14’x 16′ |
| Approximate weight |
2 tons |
2.5 tons |
3 tons |
3 tons |
3.5 tons |
