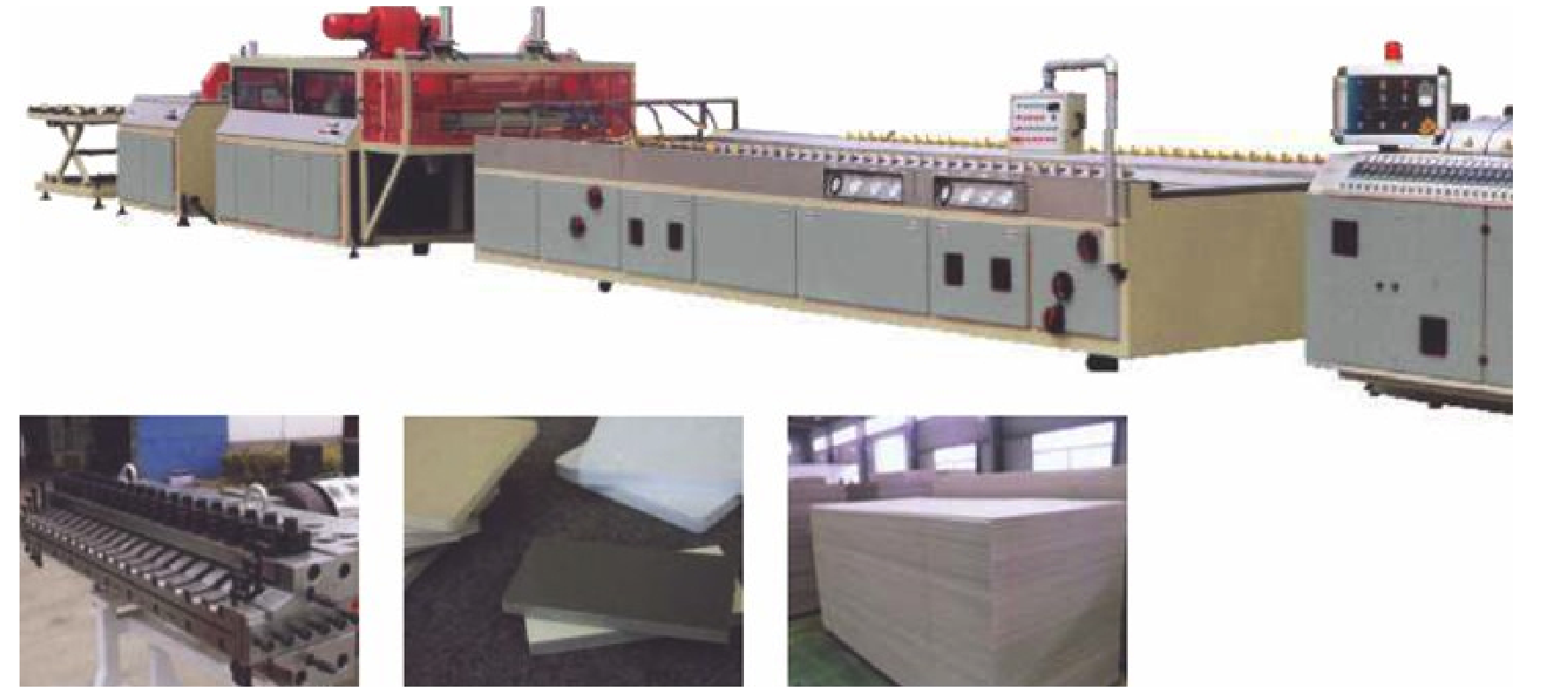

For PVC/ WPC foamed board/ Profile extrusion, the following post extrusion down stream equipment can be paired with our Conical Twin Screw Extruders.
The downstream equipment includes calibration table, hauler, cutter and stacker.
The caterpillar hauler is equipped with precision gear motor and inverter, which possesses reasonable structure, strong and stable hauling force.
The cutter is equipped with PLC control system which helps to set length and provide accurate automatic cutting. The stacker is covered with rubber grip blocks to prevent products from damage
| Downstreams/ POST Extrusion Equipments | Max. product width | Vacuum calibration unit | Hauler | Cutter | |||
| Vacuum pump | Water pump | (mm) Length | Motor | Motor | Cutting type | ||
| YF-240S | 240 | 5.5kwx2 | 4.0kwx1, 1.5kwx1 | 4000 | 1.1kwx2 | 2.2kwx1 | Horizontal Cutter |
| YF-240 | 240 | 5.5kwx4 | 4.0kwx1, 2.2kwx1 | 6000 | 1.5kwx2 | 2.2kwx1 | Horizontal Cutter |
| YF-300 | 300 | 5.5kwx4 | 4.0kwx1, 2.2kwx1 | 6000 | 1.5kwx2 | 2.2kwx1 | Horizontal Cutter |
| YF-600 | 600 | 7.5kwx2; 5.5kwx2 | 4.0kwx1, 2.2kwx1 | 6000 | 2.2kwx2 | 2.2kwx1 | Horizontal Cutter |
| YF-1000 | 1000 | 11kwx2; 5.5kwx2 | 4.0kwxl, 2.2kwx1 | 8000 | 5.5kwx2 | 2.2kwx1 | |
| YF-1250 | 1250 | 11kwx4 | 4.0kwx2 | 8000 | 5.5kwx2 | 4.0kwx1 | |
