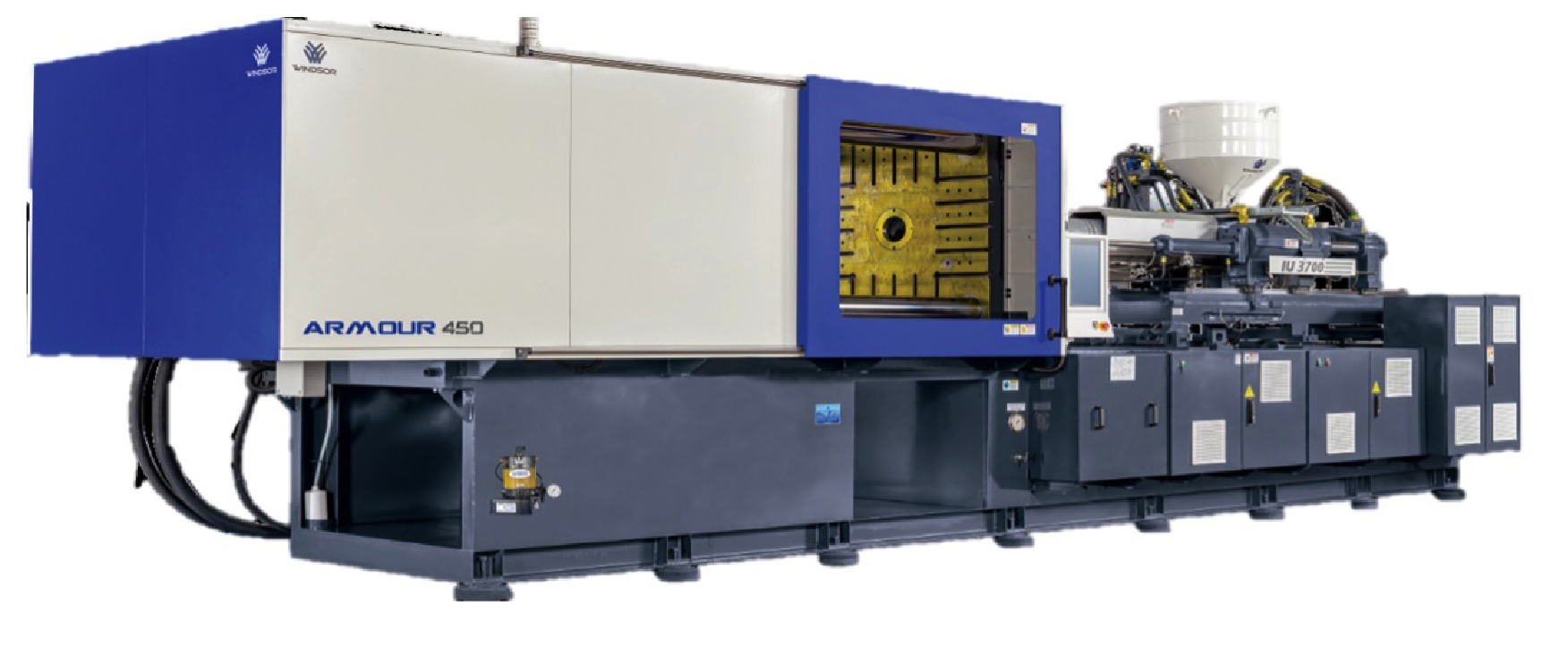

Armour Series

Specification

PARAMETERS UNIT ARMOUR 450 ARMOUR 600 ARMOUR 700 ARMOUR 800 ARMOUR 900
INJECTION UNIT 3700 5700 7500 8800 10400
Screw Diameter mm 80 90 100 90 100 110 100 110 120 110 120 125 110 120 125
Injection Pressure bar 1838 1452 1176 1991 1613 1333 1911 1579 1327 1749 1470 1355 1988 1671 1540
Stroke Volume cc 2011 2545 3142 2863 3534 4276 3927 4752 5655 4562 5429 5890 5227 6220 6750
Screw Stroke mm 400 450 500 480 550
Max Injected Weight gms 1719 2417 2985 2720 3358 4063 3731 4514 5372 4334 5157 5596 4965 5909 6412
Injection Rate (Servo) cc/s 434 550 679 526 649 786 548 663 789 599 712 773 527 627 680
Injection Rate (VDP) cc/s 367 465 574 613 757 915 639 773 919 698 830 901 614 730 793
Plasticising Rate (Servo) g/s 80 95 110 100 120 140 120 140 160 140 160 170 110 130 140
Plasticising Rate (VDP) g/s 75 80 95 110 120 150 130 150 170 150 170 180 130 150 160
Screw Speed (Servo) rpm 225 150 120 120 100
Screw Speed (VDP) rpm 175 175 140 140 120
L/D Ratio     – 22.5 20 18 22.2 21.1 18.2 22 20 18.3 21.8 20 19.2 21.8 20 19.2
Heating Capacity kW 37.9 50.2 64.4 68 65.9
No of Heating Zones No 7 7 7 7 7
Nozzle Protrusion mm 65 65 65 50 65
Nozzle Contact Force kN 150 150 150 160 150
CLOSING UNIT
Clamping force ton 450 600 700 800 900
Mould Opening Stroke mm 760 900 1000 1100 1100
Mould Height (Min-Max) mm 300-750 300-950 400-950 500-1200 500-1200
Distance bet Platens (Max) mm 1510 1850 1950 2300 2300
Distance bet Tie Bars (HxV) mm 800 X 720 900 X 820 1000 X 940 1120 X 1020 1120 X 1020
Clamping Platens (HXV) mm 1165 X 1085 1315 X 1230 1475 X 1410 1620 X 1520 1620 X 1520
Ejector Force kN 80 80 130 130 130
Ejector Stroke mm 250 300 300 350 350
GENERAL DATA
Pump Drive (Servo) kW 20.7 32.1 32.1 32.1 32.1
Pump Drive (VDP) kW 48.7 78.7 78.7 78.7 78.7
Overall Dimensions mm 8970 X 2235 X 3030 10100 X 2635 X 2915 11400 X 2720 X3085   11400 X 2720 X3085 12140 X 2865 X 3135
Total Conn Load (Servo) kW 58.6 82.3 96.5 100.1 98
Total Conn Load (VDP) kW 86.6 128.9 143.1 146.7 144.6
Oil Tank Capacity ltr 800 800 800 800 1200
Hopper Capacity ltr 200 200 200 200 200
Machine Weight ton 24 30 35.5 39.5 42
